Description

The R60 agricultural drone was developed by ZAi and is a multifunctional flight platform designed specifically for modern agricultural needs.

1.Integrating spraying, sowing, and precision agriculture operations, equipped with 360 ° active phased array radar, FPV gimbal, and intelligent safety system 3.0, it can efficiently respond to complex farmland environments.

2.Adopting modular design, integrating flight control, dual antenna RTK module, high-precision weighing module, etc., the waterproof level of electronic equipment reaches IP67, ensuring stable operation in harsh environments.

3.Equipped with multiple operation modes such as autonomous driving, A-B point flight, obstacle avoidance flight, terrain following flight, etc., it is suitable for rich scenarios such as agricultural spraying, fruit tree spraying, forest sowing, and aquaculture sowing.

4.Outstanding safety performance, active phased array radar can quickly predict obstacles such as trees and power poles, paired with high brightness LED searchlights, making night work safer;

5.The body is made of all aluminum alloy material, and the arm folding structure 2.0 has a built-in self-locking reverse buckle to prevent it from falling off during flight.

6.Lightweight and foldable design, easy to carry and transport, capable of switching between work boxes within 5 minutes, combined with a data platform to achieve global visualization and analysis of operational data, enhancing the level of intelligent agricultural production.

Who we're currently dealing with?

Agricultural professionals (owning large farms or orchards), agricultural technology enthusiasts, agricultural service providers, farmers, and large-scale planters. They pursue efficient plant protection technologies and attach great importance to the performance, operational efficiency, and safety of equipment.

Technical Parameters

Drone Parameters		Spraying System
Model Number	ZAi-R60	nozzle type	Centrifugal nozzle
Product Name	ZAi Pesticide Spray 55L Drone	number of nozzles	2 nozzles (optional:fruit tree kit, plus 4 sprinklers )
Architecture layout	four-axis layout	max flow	80KG/minute

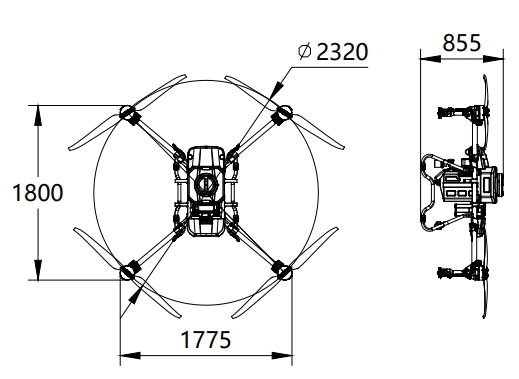

Max wheelbase	2320mmm	maximum spray amplitude	12m
Overall dimension	2850 × 2850 × 855mm(arm unfolded.blade unfolded)	Smart Charger
	1800×1775×855mm(arm folded)	nominal power	7200W/ 90A
Pesticide container capacity	70L	Charging technology:	High temperature 5C charging technology
Seed container capacity	65KG	Charging time:	9-11 minutes to fully charge
Drone weight	34.8kg(not including battery)
Battery		Remote Control
Battery capacity	18S (30000MAH 70.4V)	5.5 inch HD display	Pixel 1920x1200/ Brightness 1500cd/m
Battery packing	Size: 32.5*22.3*38.3mm Weight: 14kg	Endurance time :	15hrs
Flight Parameters
Maximum flight speed		8m/s
Flight altitude		other
Maximum flight radius		other
No-load flight time		100kg takeoff weight, flight time of 8 minutes and 30 seconds
No-load endurance		other
Hovering accuracy		Horizontal ±10 cm, vertical ±10 cm
obstacle avoidance perception range		360 ° active phased array radar
graphic transmission		6-10KM digital image transmission
Wind resistance		6m/s
Protection grade		The overall waterproof rating of electronic devices is IP67 Power system waterproof rating IPX6
Working temperature		0℃~55℃
Maximum take-off weight		105KG (within an altitude of 2000 meters)
A standar set including: ZAi-Q100 drone*1,8 inch HD display remote control*1,battery*2,Smart charger*1
